BR-OW LV(11.77-16 KWh)

Nominal Energy (kWh) : 11.77kWh/14.33kWh/15.36kWh/16kWh

Cell Type : LFP (LiFePO4)

Nominal Voltage (V) : 51.2

Nominal Capacity : 230Ah/280Ah/300Ah/314Ah

Operating Voltage Range (V) : 43.2~57.6

Max. Continuous Charge Current(A) : 200

Max. Continuous Discharge Current(A) : 200

Weight : 96KG/112KG

Dimensions (W × D × H) (mm) : 500*232*670/475*255*770

Operating Temperature (°C) : 0~ 60℃ (Charge), -20~55℃ (Discharge)

Installation Location : Ground-Mounted, Wall-Mounted

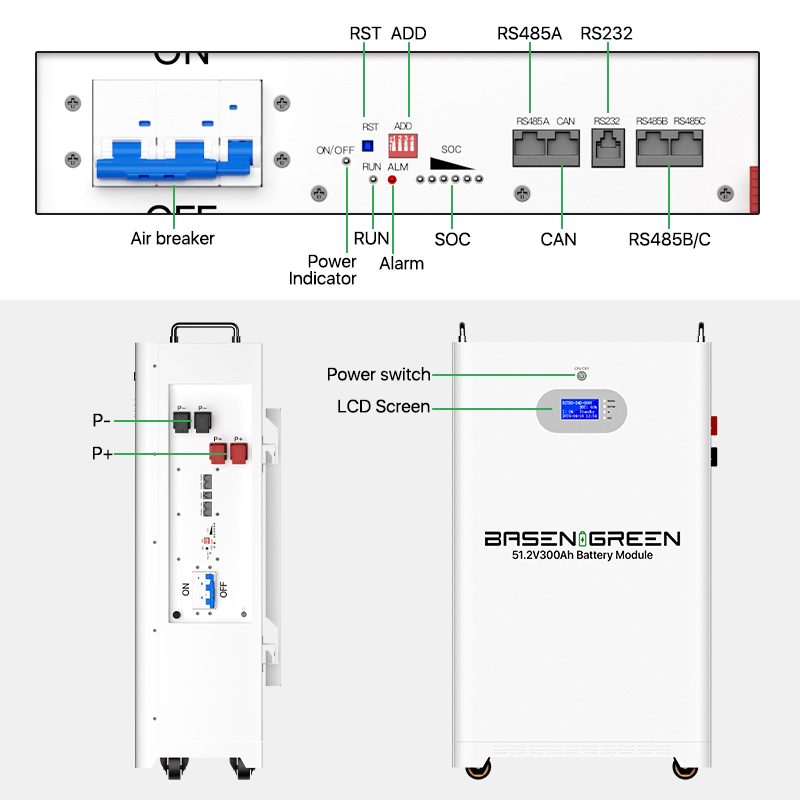

Communication : CAN, RS485

Certification : CE, IEC 62619

Warranty : 10 Years
