BR-PC LV(15-30KWH)

Nominal Energy (kWh) : 15kWh/30kWh

Cell Type : LFP (LiFePO4)

Nominal Voltage (V) : 51.2

Nominal Capacity : 300Ah/600Ah

Operating Voltage Range (V) : 43.2~57.6

Max. Continuous Charge Current(A) : 200

Max. Continuous Discharge Current(A) : 200

Weight : 112KG/214KG

Dimensions (W × D × H) (mm) : 620*285*770mm/885*470*620mm

Operating Temperature (°C) : 0~ 60℃ (Charge), -20~55℃ (Discharge)

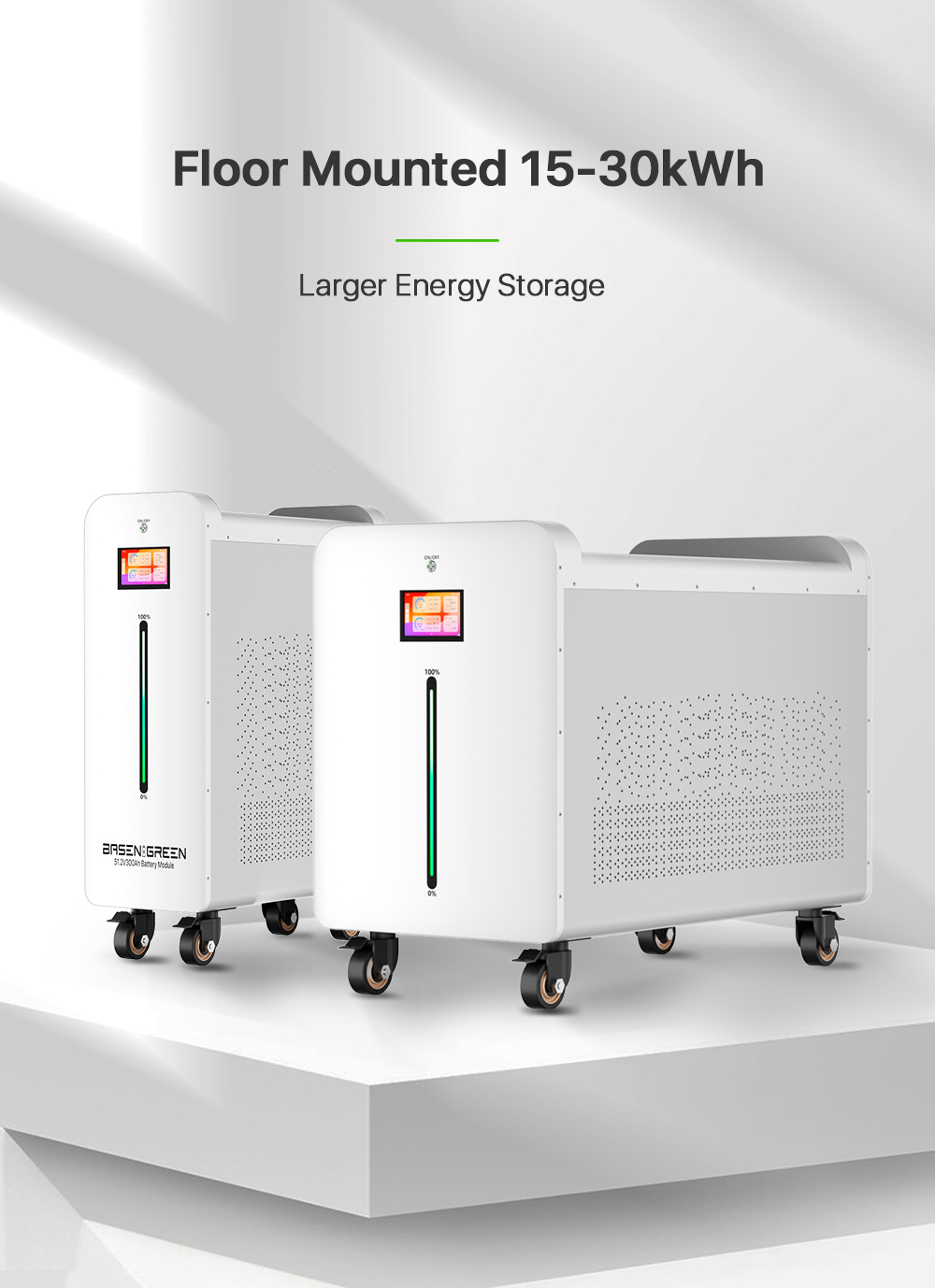

Installation Location : Ground-Mounted

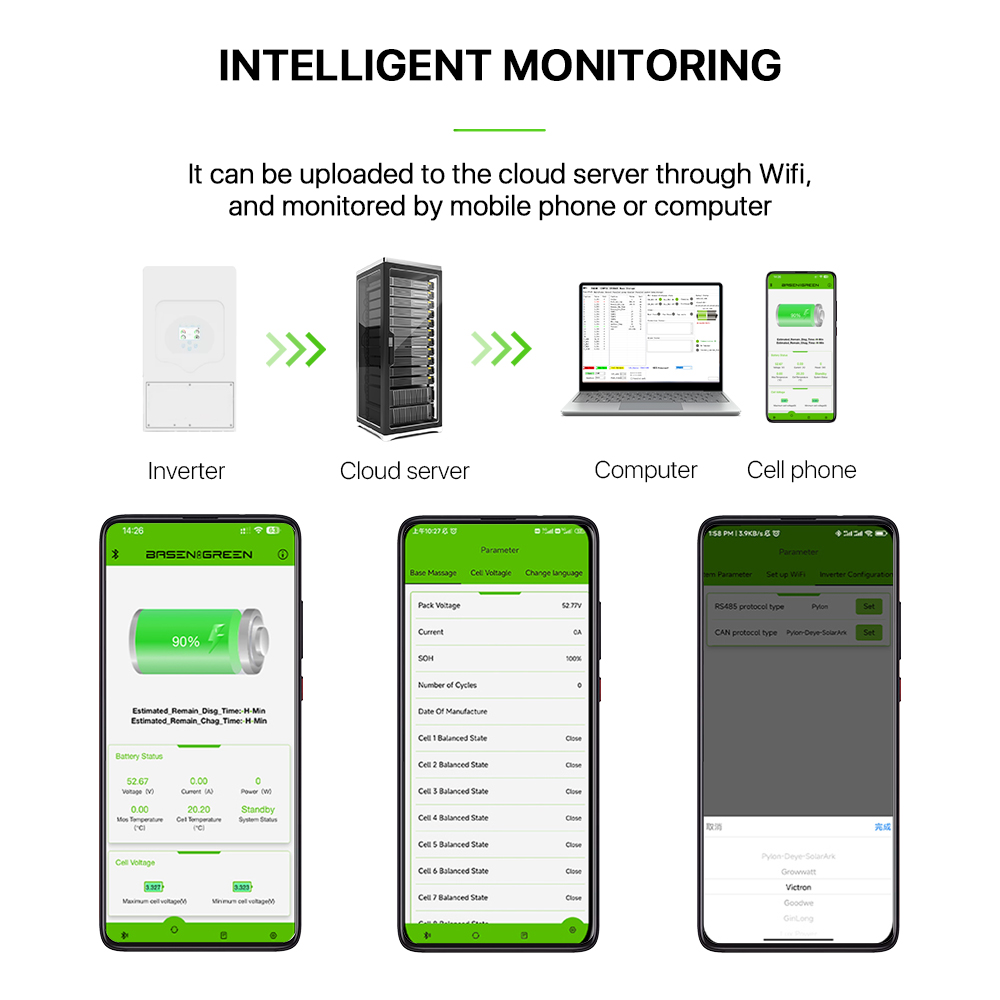

Communication : CAN, RS485

Certification : CE

Warranty : 10 Years
