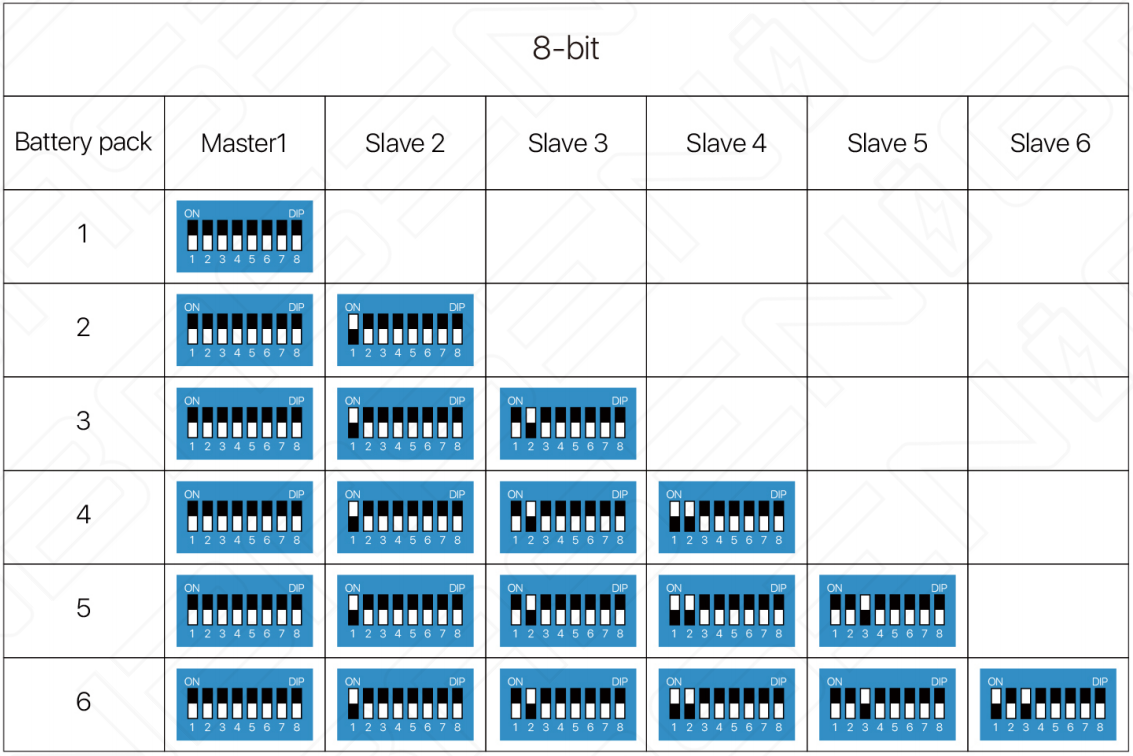

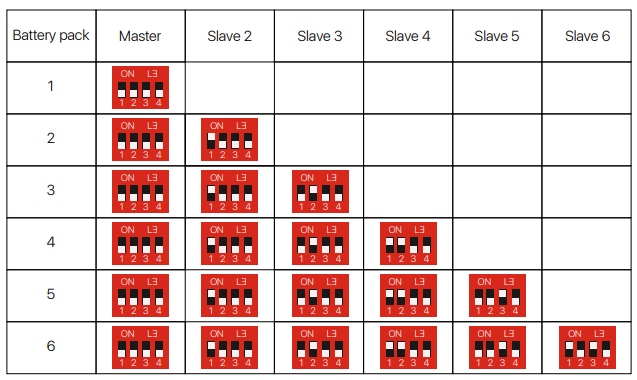

Step 1: Battery dialing, as shown in the figure below





Step 2: battery parallel communication

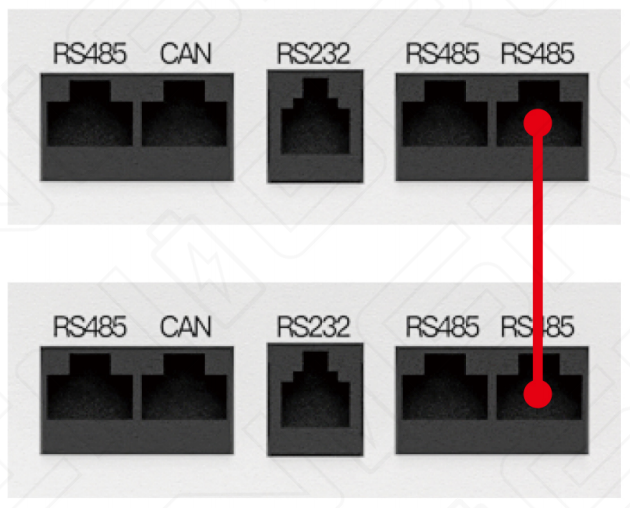

If you have two or more battery packs in parallel, insert the RJ 45 battery parallelcommunication wire into the RS485 hole of the battery





Step 3: Connect the upper computer / Bluetooth selection protocol (how toconnect the upper computer, please check the operation instructions)



01. Setup of the upper computer

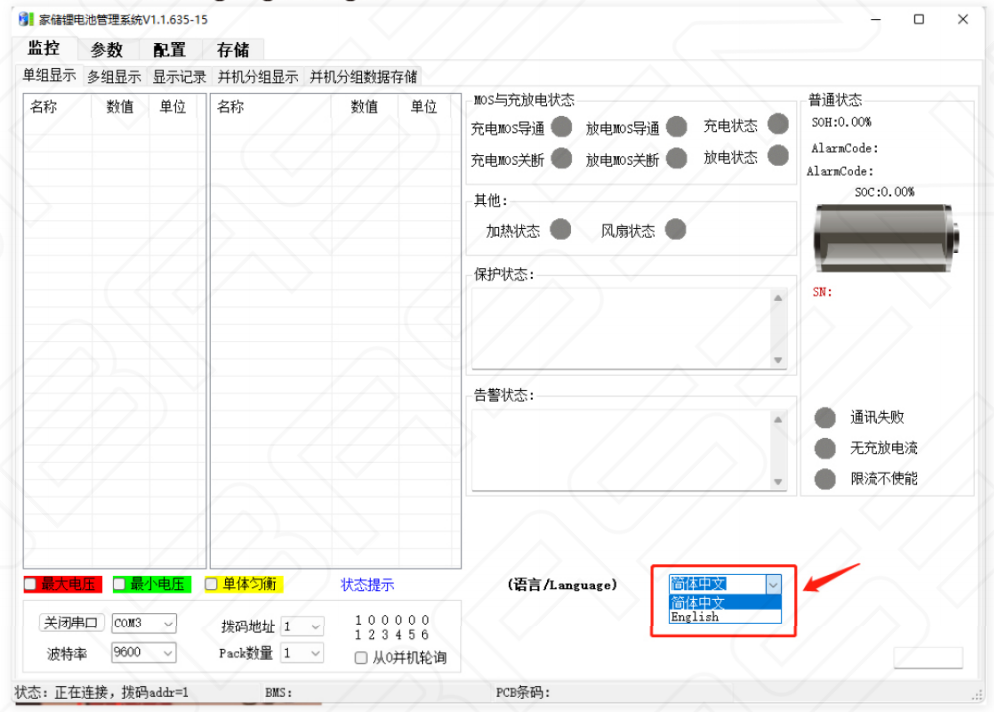

a. Select the Language -English

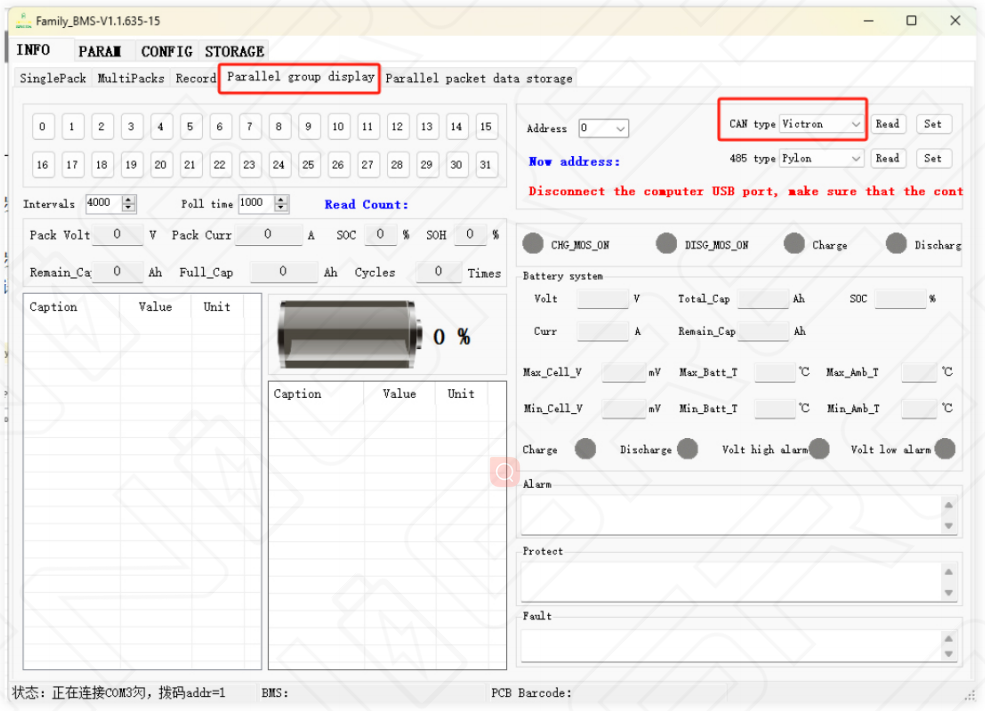

b. Enter the Parallel group display interface and select the VICTRON protocol

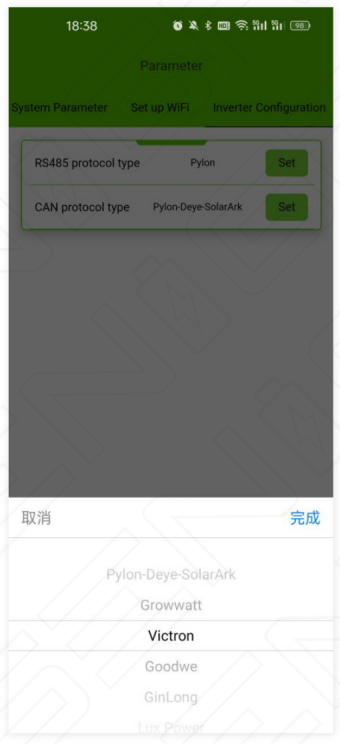

02. Bluetooth Settings

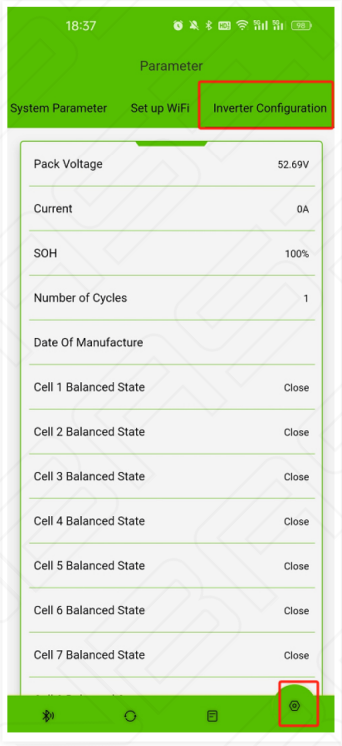

a. Enter the Bluetooth-Settings-inverter configuration

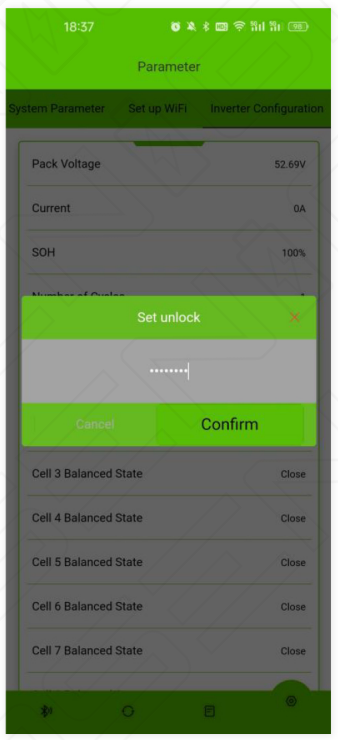

b.Enter the password: 888888





c. Select the VICTRON in the CAN





d. Click Settings, and you will hear "bee"after the success





Step 4: Set inverter end crystal head, only suitable for VICTRON inverter



Battery: 4H5L (usually we set it up in advance)

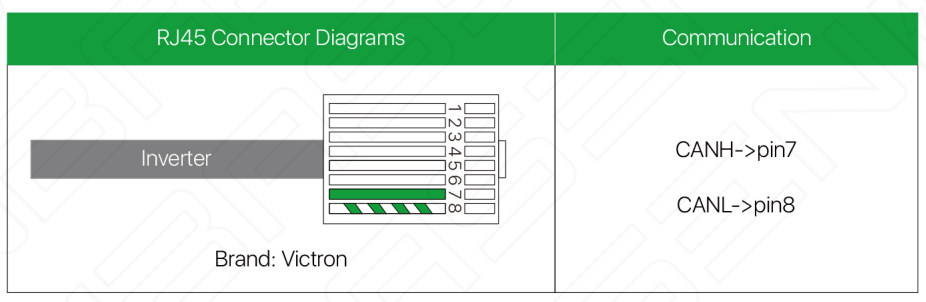

Inverter: 7H8L(as shown below)





Step 5: Connect the inverter communication line

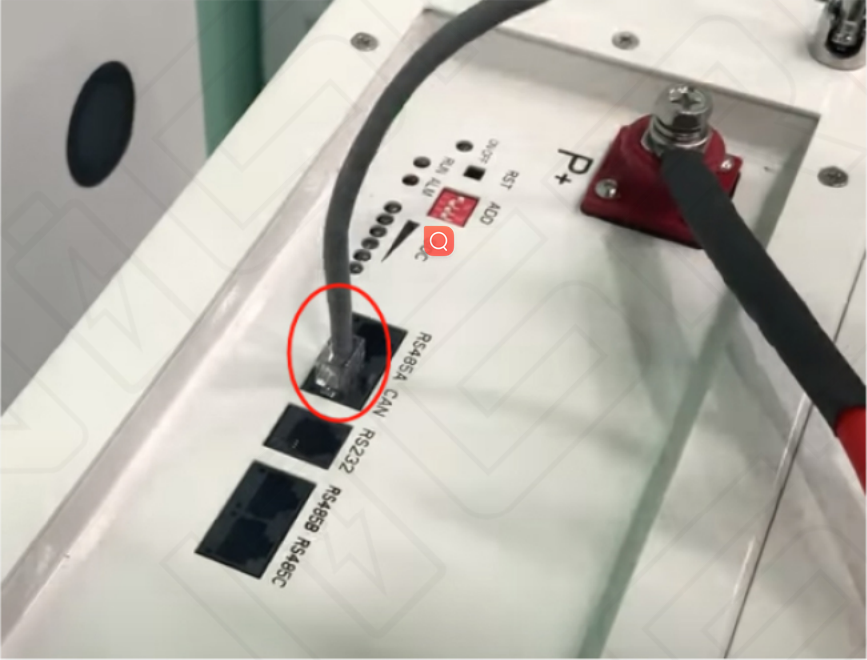

01. Battery end: Insert into the CAN port

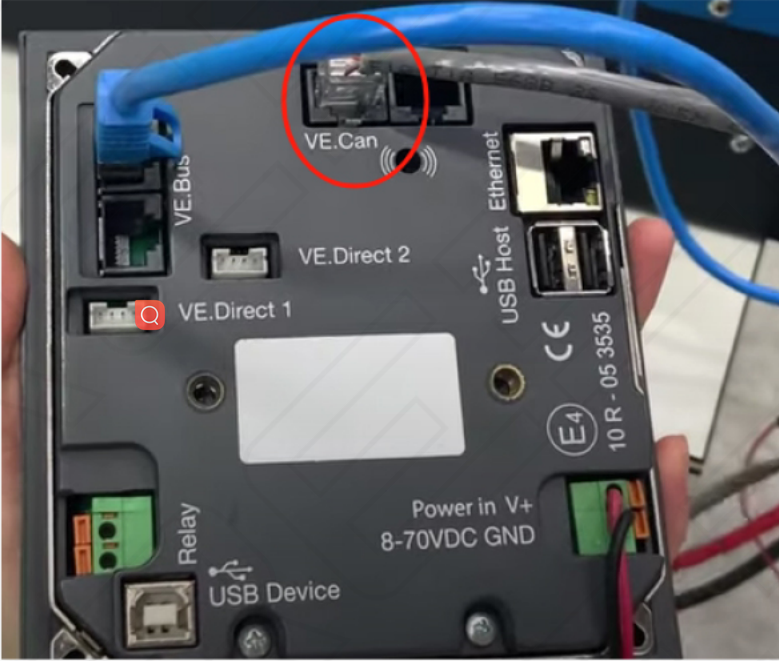

02. Inverter end insertion: VE.

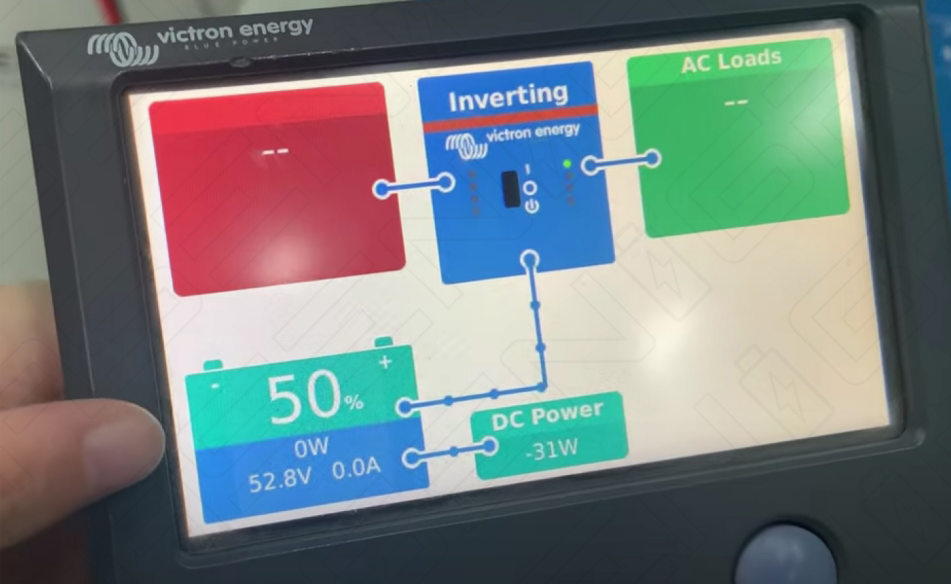

Step 6: Successful communication





You can also refer to our YOUTUBE VICTRON inverter connection video:
https://www.youtube.com/watch?v=fGhLb6QEAZk
